A CW Floppy quotation is useful only when it identifies the board, hardware, dimensions, installation scope and commercial unit behind the price. By checking those details against your site conditions, cleaning demands and privacy requirements, you can compare suppliers in Gujarat without mistaking a low headline rate for a complete solution.
Key takeaways
- Define the board, thickness, dimensions, fittings and installation limits in writing.
- Measure finished floor levels, wall positions, ceiling height and service locations before fabrication.
- Compare quotes by included materials, hardware, transport, installation and taxes—not price alone.
- Secure cleaning instructions, repair response times, replacement terms and warranty exclusions.
What should a CW Floppy specification include?
CW Floppy is a trade label, not a BIS material category for a toilet cubicle partition. Before requesting a price, make the supplier define the board, dimensions, fittings and installation limits rather than treating the label as a specification.
1. State the panel core as compact-grade HPL or solid phenolic laminate, not ordinary decorative laminate over a moisture-sensitive substrate. Record density or grade, thickness, decorative finish, colour range, exposed-edge treatment, moisture-resistance limit, screw-holding capacity and the approved drilling method.
2. Record panel length and width, maximum cubicle height and bay width, door height and width, and pilaster dimensions. Include adjustable support legs, finished floor clearance, headrail or brace arrangement, allowable door load and installation tolerances.
3. Identify hardware material and stainless-steel grade, hinge type, indicator-bolt type, handle, brackets and fasteners. Grade 304 stainless steel suits many interior restrooms; grade 316 deserves consideration in coastal or chloride-rich conditions.
Ask for a physical sample, an exposed-edge detail and written limits for wetting, drilling, loading and cleaning. “Waterproof,” “premium board” and “SS hardware” do not identify the core, grade or performance.
The technical schedule should show whether floor clearance is part of the CW Floppy design, because a low price can exclude legs, braces, hardware or edge protection.
How does the clear-floor arrangement compare with other cubicle systems?

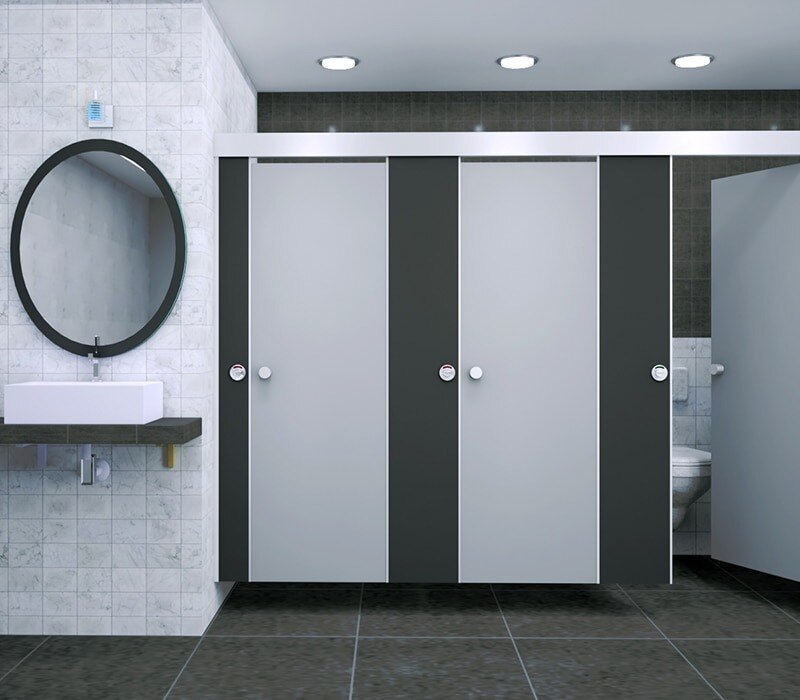

The clear-floor arrangement leaves panels and pilasters above the finished floor on adjustable legs, creating a defined cleaning gap while exposing the floor around drains and traps. The drawing must state the exact clearance, finished-floor level, skirting height, drain position, and whether a scrubber, hose or wet mop can pass beneath each panel.
Adjustable legs absorb some slab variation.
| Option | Rigidity and sound control | Cleaning, durability and repair |
|---|---|---|
| CW Floppy clear-floor | Moderate rigidity and sound separation; weaker visual privacy than full-height construction | Fast routine cleaning; some floor-level adjustment; replace individual panels or hardware |
| Floor-to-ceiling | Strong rigidity, privacy and sound separation | Slower floor cleaning; durable when sealed; repair can require removing larger fixed sections |
| Ceiling-hung | Good open-floor access, with rigidity depending on structural support | Fast cleaning; demands accurate ceiling fixing and tighter tolerances; repairs require safe access above |
| Stainless steel | High impact resistance and good rigidity; sound control depends on construction | Quick wipe-down, repairable dents and welds; select the grade for corrosion exposure |
| Compact laminate | Rigid solid panels with good wet-area performance; sound control depends on thickness and joints | Fast cleaning, colour choice and individual panel replacement; damaged edges or drilled areas need proper repair |
Ask a restroom cubicle dealer to show the proposed clearance and finished dimensions on the plan, not just a product photograph. Choose full-height construction for stronger privacy, anti-ligature detailing, fire-rated construction or extreme vandal resistance.
Reject CW Floppy for a specialised accessible layout unless the clear opening, manoeuvring space, grab-bar zones and fixture clearances are checked separately.
What must you measure before fabrication and installation?
Before final fabrication, a toilet cubicle supplier must measure the built room, not rely on nominal drawing dimensions. Record finished-floor levels at every wall, wall squareness, room diagonals, skirting thickness, floor traps, drains, plumbing centres, pipe projections, door swings, stops, partition setbacks, and beam, slab or ceiling obstructions.
1. Schedule standard compartments, urinal screens, shower areas and accessible compartments separately. Check accessible areas against the project’s applicable building and accessibility requirements: clear approach, door manoeuvring space, turning area, grab-bar zones and fixture clearances. Do not replace this check with a nominal cubicle size.
2. Show the finished clear opening after pilasters, hinges, stops and handles are installed. A 900 mm nominal bay does not automatically provide 900 mm of clear internal width.
3. Confirm the substrate and finished levels, mark fixing lines, install brackets and adjustable legs, set pilasters and partitions, hang doors, fit hardware, adjust reveals, and inspect floor clearance.
Complete tiling and waterproofing before installation, and finish plumbing pressure tests first. Provide power-free access, protected material storage, a lifting route, and protection for existing finishes. The site team must also confirm drain access and the planned cleaning gap beneath panels before fixing begins.
How should you compare CW Floppy prices from Gujarat suppliers?
A quoted rate is not comparable until the commercial unit and installation scope match. A cw floppy restroom cubicle supplier in gujarat may price per compartment, square foot of partition area, running foot or as a lump-sum installed package.
| Commercial basis | What the rate measures | Risk in comparison |
|---|---|---|
| Per compartment | One toilet bay | Bay width, door size and return panels may differ |
| Per square foot | Panel area | Hardware, doors and installation may be excluded |
| Per running foot | Partition length | Compartment count and pilaster height can vary |
| Lump-sum installed | Complete agreed package | Exclusions must be listed before approval |
Request a like-for-like bill of quantities from every restroom cubicle supplier. It should separately price:
- Panels, doors, pilasters, headrails and adjustable legs
- Hinges, indicator bolts, handles and brackets
- Delivery to the actual site, unloading and upper-floor movement
- Installation, GST, tile drilling and civil or plumbing alterations
- Packaging removal and any restricted-access charge
Require each quotation to state bay width, finished height, door size, return panels, compartment count, hardware grade, floor-clearance arrangement and installation tolerances. Ask whether transport reaches the site and whether local access changes the price.
Cubicle World industries Pvt Ltd should be assessed on that completed specification, not its lowest advertised rate. Obtain warranty exclusions for forced doors, plumbing leaks, unsealed site cuts, unsuitable chemicals, corrosion and site damage.
Related product
 | Restroom Cubicles PRODUCT DESCRIPTION CW Floppy are tailor-made for restrooms. These cubicles have a clear floor concept which is very friendly as far as the... View product → |
What cleaning, repair and warranty terms should you secure?
Put every cleaning, repair and warranty term in the purchase order, handover pack and maintenance schedule; verbal assurances from a restroom cubicle supplier are difficult to enforce.
1. Obtain the approved cleaner, dilution ratio and contact-time limit. Record prohibitions on abrasive pads, strong acids and chlorine-based chemicals because aggressive products can dull finishes, attack plated fittings and accelerate corrosion.
2. State the moisture-control routine: remove standing water, repair leaking flush pipes and reseal damaged drilled edges before water reaches the panel core. Inspect hinges, indicator bolts, handles, brackets, adjustable legs and fasteners for looseness, rust, cracked nylon parts and forced-door damage.
3. List replaceable parts and lead times. Confirm that a damaged door or panel can be replaced individually without dismantling the toilet bank, and secure written availability for matching colours, hinges, indicator bolts and other hardware.
4. Separate warranty coverage for manufacturing defects from exclusions for plumbing-related water ingress, swelling from unsealed cuts, chemical damage, cleaning-regime corrosion and impact or forced-door damage. Require the final inspection record to show panel dimensions, floor clearance, door reveals, hardware operation, agreed tolerances and every open snag item. Have both parties sign it at handover.
Frequently asked questions
What should a CW Floppy restroom cubicle specification include?
Define the board material and thickness, panel and door dimensions, edge treatment, colour, hardware, clear-floor arrangement, accessories, installation method and site limits. Treat CW Floppy as a trade label rather than a material standard.
How does a clear-floor cubicle arrangement compare with other systems?
A clear-floor arrangement reduces floor-mounted obstructions and simplifies mopping, but it places greater demands on overhead supports, wall strength, alignment and hardware quality. Compare it with floor-supported and ceiling-hung systems against cleaning access, rigidity, serviceability and site conditions.
What must you measure before cubicle fabrication and installation?
Record finished floor levels, room length and width, wall plumb, ceiling height, column and door positions, drain locations, plumbing lines, ventilation openings and access constraints. Check dimensions after screed, tiles and waterproofing are complete.
How should you compare CW Floppy prices from Gujarat suppliers?
Request an itemised quote covering boards, doors, pilasters, hardware, supports, accessories, transport, installation, taxes, protection and removal of waste. Compare the same dimensions, quantities, material thickness and hardware grade across suppliers.
What cleaning, repair and warranty terms should you secure?
Ask for approved cleaning chemicals, dilution instructions, repair response times, spare-part availability, warranty duration, covered defects and exclusions. Confirm who pays for damage caused by misuse, moisture, harsh chemicals or building movement.
